    Powerful Sand Suction Dredger For River And Lake Cleaning

    Ask Lasest Price
    Brand Name : yongsheng
    Model Number : ys-8inch
    Price : 66000usd/piece
    Payment Terms : T/T,L/C
    Supply Ability : 100piece/Year
    Delivery Time : 30 work days
    • Product Details
    • Company Profile

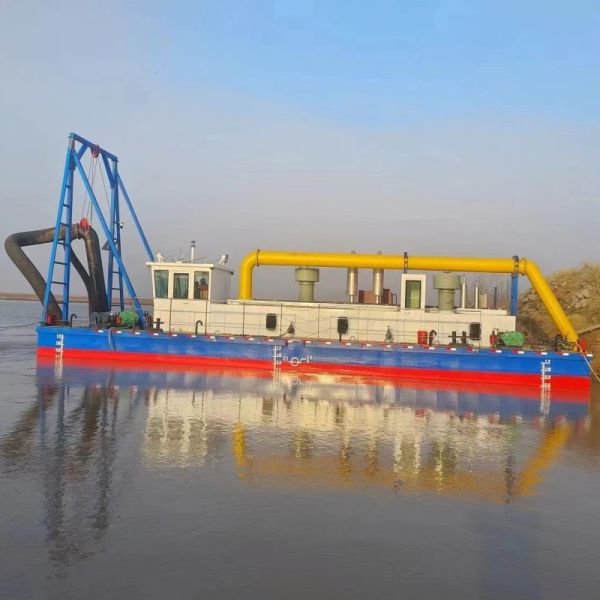

    Powerful Sand Suction Dredger For River And Lake Cleaning

    Jet Suction Sand Dredger for River and Lake Cleaning

    Jet suction dredger is equipped with a high-pressure water pump and a powerful sand suction pump, which
    work in tandem to effectively dredge the seabed or riverbed. The water pump generates a high-pressure,
    high-speed water jet that impacts the bottom of the sand layer, agitating and splashing the mixed sand around
    the suction head. The sand suction pump then conveys the loosened material through the discharge pipe to
    the desired destination.

    Powerful Sand Suction Dredger For River And Lake Cleaning

    Product Paramenters:
    Model
    Soild
    capacity
    Water flow
    Dredging depth
    Discharge distance
    Main engine
    Auxiliary engine
    Total consumption
    size(m)
    6inch
    40-50
    m3/h
    250
    m3/h
    6M
    500M
    120
    KW

    18L/H
    10*3.8*1.6
    8inch
    80-100
    m3/h
    500
    m3/h
    8M
    500M
    176
    KW
    60KW
    40L/H
    14*4.5*1.2
    10inch
    150-180
    m3/h
    900
    m3/h
    10M
    800M
    294
    KW
    88KW
    60L/H
    17*5*1.2
    12inch
    200-250
    m3/h
    1400
    m3/h
    10M
    1000M
    456
    KW
    110KW
    80L/H
    20*6*1.5
    14inch
    300-400
    m3/h
    2000
    m3/h
    12M
    1500M
    735
    KW
    120KW
    120L/H
    24*6.6*1.6
    16inch
    400-500
    m3/h
    2600
    m3/h
    14M
    1500M
    882
    KW
    258KW
    150L/H
    24*7.2*1.8
    18inch
    500-600
    m3/h
    3000
    m3/h
    14M
    1500M
    1103
    KW
    456KW
    220L/H
    24*7.6*2.0
    20inch
    600-700
    m3/h
    3800
    m3/h
    14M
    1500M
    1250
    KW
    456KW
    240L/H
    26*7.6*2.0
    Note: Because this equipment is a customized product, the maximum conveying distance of one pump is 1000-2000m. If long-distance conveying is required, a separate relay pump group is added.
    The above output is calculated based on the conventional flow rate 15-20% concentration. If the long-distance conveying concentration will be reduced, it can be calculated based on about 15% of the flow rate.




























    Powerful Sand Suction Dredger For River And Lake Cleaning

    Powerful Sand Suction Dredger For River And Lake Cleaning

    Powerful Sand Suction Dredger For River And Lake Cleaning

    shandong yongsheng dredging machinery co., ltd.

    emma whatsapp:008615054842997 email:emma@dredgerys.com
