    18 Inch Hydraulic Jet Suction Sand Dredging Pump Low Noise

    Ask Lasest Price
    Brand Name : yongsheng
    Model Number : YSJSD450
    Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram
    Delivery Time : 50days
    • Product Details
    • Company Profile

    18 Inch Hydraulic Jet Suction Sand Dredging Pump Low Noise

    18 Inch Hydraulic Jet Suction Sand Dredger for Sale in Malaysia

    product description

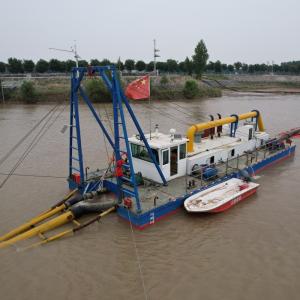

    Jet Suction Dredger is an engineering vessel that collects underwater sand and gravel by combining high-pressure jet

    and negative pressure suction. It has the functions of excavation, transportation and screening and is widely used in

    sand mining, dredging, mineral sand extraction and other fields.

    Core working principle
    High-pressure jet system:
    The ship-borne diesel engine drives the high-pressure water pump, which sprays high-speed water through the nozzle

    Negative pressure suction system:
    The local low-pressure area caused by the jet + the centrifugal mud pump work together to suck the sand-water mixture

    through the sand suction pipe


    product parameters

    Model

    Capacity

    Water flow

    Dredging depth

    Discharge distance

    Main engine

    Auxiliary engine

    Fuel consumption

    Dimension(L*W*H)

    YSJSD150

    40-50m3/h

    250m3/h

    6m

    500m

    120KW

    /

    18L/H

    10*3.8*1

    YSJSD200

    80-100m3/h

    500m3/h

    8m

    500m

    176KW

    60KW

    40L/H

    14*4.5*1.2m

    YSJSD250

    150-180m3/h

    900m3/h

    10m

    800m

    294KW

    88KW

    60L/H

    17*5*1.2m

    YSJSD300

    200-250m3/h

    1400m3/h

    10m

    1000m

    456KW

    110KW

    80L/H

    20*6*1.5m

    YSJSD350

    300-400m3/h

    2000m3/h

    12m

    1500m

    735KW

    220KW

    120L/H

    24*6.6*1.6m

    YSJSD400

    400-500m3/h

    2600m3/h

    14m

    1500m

    882KW

    330KW

    150L/H

    24*7.2*1.8m

    YSJSD450

    500-600m3/h

    3000m3/h

    14m

    1500m

    1103KW

    406KW

    200L/H

    26*7.6*2m

    YSJSD500

    600-700m3/h

    3800m3/h

    14m

    1500m

    1250KW

    456KW

    240L/H

    26*7.6*2m

    Shooting faucet
    Material: Usually made of strong and wear-resistant metal materials, such as cast iron, stainless steel, etc., to resist the

    erosion and wear of water flow and mud and ensure long-term stable operation.
    Shape: Generally a circular or oval tubular structure, with a sand suction port at the front end and a sand suction pipe at

    the rear end. Some shooting and suction faucets will also be designed to be bendable or retractable according to actual

    needs to adapt to different working environments and angle requirements.
    Counterweight: In order to ensure the stability and verticality of the shooting and suction faucet underwater, counterweight

    blocks are usually installed at or around its bottom so that the sand suction port can be better close to the bottom mud

    layer and improve the sand suction efficiency
