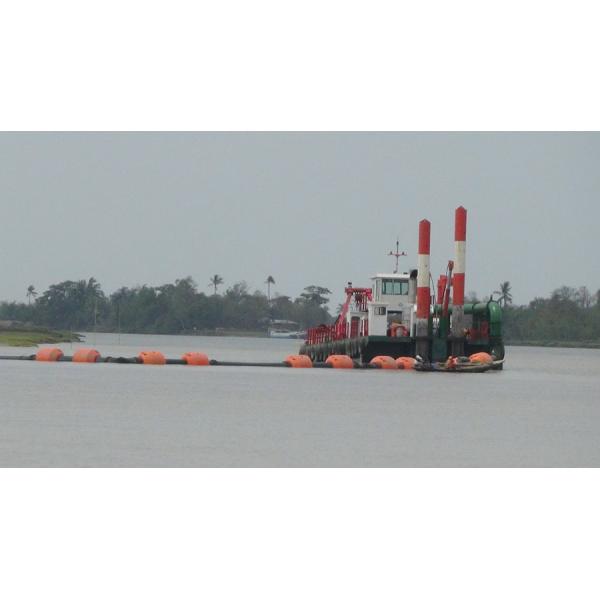

Product Description:
| YSCSD650 26 inch solid capacity 1400 cbm/h hydraulic cutter suction dredger |
| Technical specifications |
| Water flow | 7,000 m3/h |
| Solid capacity | 1400cbm/h |
| Max. dredging depth 45° | 18 m |
| Discharge distance | 1,800 m |
| LOA | 50 m |
| Dredger after assembly | 50*11*3.2m Length* width* depth |
| Dredger structure | Dismantle type and can be assembly in working site |
| Average draught | 2 m |
| Diameter discharge pipe | 650 mm/26 inch |
| Main Engine | 2,685 kw Cummins engine |
| Rotate speed | 1800 r/min |
| Auxiliary engine power | 970 kw Cummins engine |
| Generator | 50 kw |
| Hydraulic cutter power | 660 kw |
| Total power | 3705 kw |
Powered by diesel oil, this Sand Dredger ship from Yongsheng
Dredger is reliable and efficient, making
it the perfect addition to your dredging equipment. With a one-year
warranty, you can trust in the quality
and durability of this product. And with the option to customize,
you can get the exact dredger you need
to fit your specific project requirements.
Applications:
The YSCSD650 sand dredger is equipped with a discharge diameter of
700 mm, making it ideal for sludge
dredging under water. This feature makes it perfect for use in
rivers, lakes, and seas. The spud carriage
is also equipped with a spud length of 21 m.
This sand dredger has many applications and can be used in a
variety of scenarios. For example, it can
be used for river dredging, beach nourishment, deep sea mining,
tailing and waste disposal,
and environmental remediation. Additionally, it can be used for
port and harbor construction, as well as
for underwater pipeline construction and maintenance.
The YSCSD650 sand dredger is custom-built to your specific needs,
making it a versatile and reliable
option for any project. Whether you need to perform maintenance on
a waterway or extract minerals
from the sea floor, this sand dredger will get the job done
efficiently and effectively.
Overall, the YSCSD650 sand dredger is a valuable investment for any
company or organization that
needs to perform dredging operations. Its high-quality
construction, versatility, and customizability
make it an excellent choice for any project.
Dredger working condition
The Maximum Temperature 500C The Minimum Temperature -100C The Maximum Temperature of engine room 500C The Maximum Temperature of The River (Sea) Water 300C The Relative Humidity ≤80%
Arrangement of the complete dredger
Main equipment on the dredger: ——Cutter head and driving system —— Frame of cutter head ——Frame of ladder A ——lifting winch for sand suction pipe ——Right and left traversing winches ——Operating room ——Dredging pump ——Deck crane ——Gearbox of dredging pump ——Main diesel oil engine and auxiliary diesel oil engine ——Generator and auxiliary equipment ——Position spud and accessories
|
CCS or Panama certificate for Cutter suction dredger from Yongsheng
dredger is available The dredger can work for land filling, sand dredging, port
deepening, channel dredging and land reclamation. The design, construction, quality inspection of our cutter suction
dredger is based on the standards and regulations of CCS. The hull,
machinery equipment and other spares are at the requirements of CCS
as well. The hull is square, cross keel, which is full welding
steel structure, and authorized by CCS.
The dredgers we are producing are diesel engine driven,
self-propelled or non self-propelled, portable hydraulic cutter
suction dredgers. The hull uses dismantle and box-like structure,
dismantle for shipment and assembly at working site. It can also be equipped with anchoring poles and spud carrier to
increase capacity.
|
Support and Services:
The Sand Dredger product technical support and services include:
- Troubleshooting and diagnosis of technical issues
- Repair and maintenance services
- Replacement of faulty components and parts
- Upgrades and modifications to improve performance and efficiency
- Technical training and support for operators and maintenance
personnel
- On-site technical assistance and supervision during installation
and commissioning
- Regular inspections and preventive maintenance services to ensure
optimal performance and longevity
Packing and Shipping:
Product Packaging:
- 1 Sand Dredger
- 1 User Manual
- 1 Warranty Card
- 1 Set of Accessories
Shipping:
- Shipping Method: Sea Freight
- Shipping Time: 90 days
- Shipping Cost: To be determined based on destination
FAQ:
Q: What is the brand name of this dredger?
A: The brand name of this dredger is Yongsheng dredger.
Q: What is the model number of this dredger?
A: The model number of this dredger is YSCSD650.
Q: Where is this dredger made?
A: This dredger is made in China.
Q: What is the certification of this dredger?
A: This dredger is certified by CCS.
Q: What is the minimum order quantity for this dredger?
A: The minimum order quantity for this dredger is 1.
Q: How much does this dredger cost?
A: The price of this dredger is custom building, please contact us
for more information.
Q: What is the packaging details of this dredger?
A: The packaging details of this dredger is in bulk.
Q: How long does it take to deliver this dredger?
A: The delivery time of this dredger is 60-90 Days.
Q: What are the payment terms for this dredger?
A: The payment terms for this dredger is 30% deposit, 70% final
payment.
Q: How many sets of this dredger can be supplied per year?
A: We can supply 30 sets of this dredger per year.
1. Working video for 26 inch cutter suction dredger in river
https://www.youtube.com/watch?v=ymHf17z0zn4
2. 4 sets of new cutter suction dredgers in stock
https://www.youtube.com/watch?v=b-IuGroZ3f4&t=16s
3. Assembly and test for 7000 m3/h cutter suction dredger in
workshop
https://youtu.be/fTPXEwE9Kw0
4. Cutter suction dredger protection and restoration project for
mountain, water, forest, lake, and sand integrated
https://youtu.be/ZnERf6AhVDY
