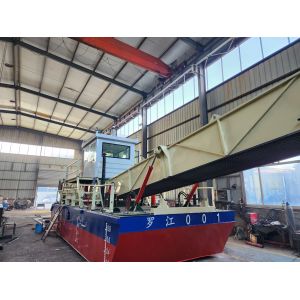

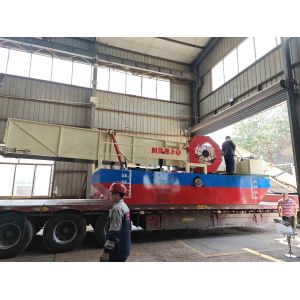

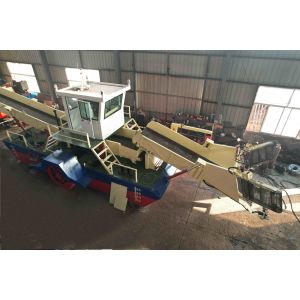

Highly mechanized surface mowing boat/cleaning boat with a cutting width of up to 2.1 meters

product description

A mowing boat, as the name suggests, is an environmentally friendly vessel designed specifically for harvesting

and clearing floating debris, such as weeds, water plants, duckweed, and garbage, from the water surface. It

is also known as a "waterweed harvester," "cleaning boat," or "aquatic plant harvester."

I. Main Components and Operating Principles
A mowing boat typically consists of the following key systems:

Hull: This provides buoyancy and serves as an operating platform. It is typically a flat-bottomed boat with a

shallow draft, making it suitable for operations in shallow waters and lakes.

Cutting System: Located at the front of the boat, this system typically features a rotating cutting disc or scissor

-like blades driven by a hydraulic motor. Its task is to cut the roots of aquatic plants underwater.

Collection and Conveying System: This is the core system, typically including:

Collection Arm/Rake: Like two arms, it gathers the cut and floating aquatic plants into a central area.

Conveyor Belt: One or more conveyor belts continuously transport the gathered aquatic plants from the

water surface to a storage compartment within the hull. Storage Chamber: Located in the middle and rear

of the vessel, it temporarily stores collected weeds.

Once full, the chamber is raised via a hydraulic lift system, allowing the weeds to be unloaded onto a shore

-based transport vehicle or a designated location.
Power System: Provides power for the vessel's navigation and all operating mechanisms (cutting, conveying,

and hydraulics). Typically, there are diesel engines or pure electric/solar hybrid systems.
Control System: The cockpit control panel controls the vessel's trajectory, cutting depth, and collection speed.

The operating principle can be summarized as follows:
Cutting → Gathering → Conveying → Storage → Unloading
As the vessel moves forward, the front cutter first cuts the weeds, then the collection arm rakes the weeds

onto a conveyor belt, which continuously transports them aboard and into the storage chamber. Once

the chamber is full, it is unloaded at shore.

product parameters

RODUCTION PROCESS

II. Main Features and Advantages
Efficient Mechanization: Replacing traditional manual salvaging, it offers extremely high efficiency, dozens

or even hundreds of times greater than manual labor, significantly saving both manpower and time.

Environmentally friendly and pollution-free: The cleaning process does not disturb the water, preventing

secondary pollution to the aquatic ecosystem. Electric models offer zero emissions and low noise.
Complete collection: It integrates the entire process of cutting, collecting, transporting, and unloading,

ensuring thorough collection.
Widely applicable: Adjustable cutting depth accommodates aquatic weeds at varying water depths.
Multi-purpose: Many mowers not only mow aquatic weeds but also remove floating debris, duckweed,

algae, and other debris, making them comprehensive water cleaning equipment.

III. Main Application Scenarios
Mowers are indispensable for the following applications:

Urban landscape water bodies: Parks, lakes, and urban rivers, maintaining beautiful water surfaces and

preventing eutrophication.

Drinking water sources: Reservoirs and water source lakes, ensuring water quality and preventing algae

and aquatic weed rotting and contaminating the water source.

Aquaculture: Clearing weeds in aquaculture ponds and reservoirs, providing a healthy growth environment

for fish and preventing hypoxia. Water Conservancy and Hydropower: Cleaning garbage and aquatic

plants in front of power station water intakes to prevent clogging of trash racks and ensure safe power

generation.
Wetland Protection: Controlling the overgrowth of invasive aquatic plants (such as water hyacinth) to

restore ecological balance.
Waterway Maintenance: Clearing aquatic plants in waterways to ensure smooth navigation.

Company Profile

Shandong yongsheng dredging machinery Co.,LTD.is located in Huanglou Street, Qingzhou City,

Shandong Province, China. It has 2 production bases , total area near 2000m2, and more than 20

years manufacturing experience in water area environmental protective equipment. It is a professional

supplier of integrated with R&D, consultation, manufacturing and after-sale service. Yongsheng now

has obtained certification: ISO9001.

Summary: The mowing boat is a technologically mature and effective water surface environmental

protection device. Through a highly mechanized approach, it addresses the challenges of aquatic

weeds and floating debris in water management. It plays a vital role in improving water quality,

restoring the ecosystem, ensuring the safety of water conservancy facilities, and enhancing urban

landscapes. It is a concrete tool for implementing the "Green Water, Green Mountains" philosophy

in water environment management.
